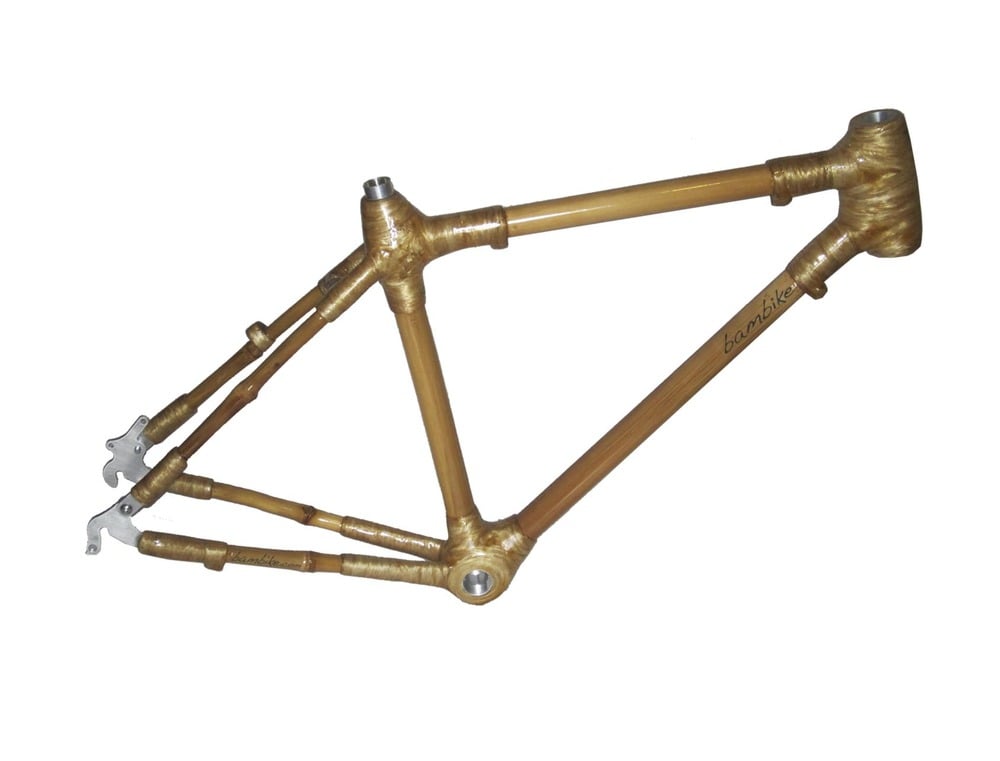

All-Terrain Bamboo Frame

This bamboo bike frame is the body of the Luntian Bambike.
It is sturdy and capable - perfect for the urban jungle or off-road trail.

Bamboo used to build a Bambike frame is harvested in the dry season and treated with natural processes: air-dried, smoked and heat-treated. The lugs are hand-wrapped abaca (aka Manila hemp) fiber with epoxy resin. Headtube, bottom bracket shell, seat tube insert, and dropouts are made from aircraft-grade aluminum.

TECHNICAL SPECIFICATIONS
Headtube 1 1/8"
Bottom Bracket 68mm ISO/English/BSA
Seat Tube 27.2mm
Dropouts Vertical w/ derailleur and bolt on seat stay (belt drive ready)

See frame geometry at http://bambike.com/luntian

CERTIFIED to EN 14766 by Intertek Testing Services

5 year Warranty
